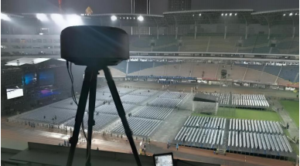

RF Detector US3000+ detects, identifies and locates the uplinkand downlink remote control

signals and mapping signals ofdrones, thus realizing the detection, tracking and warning

ofdrones (remote control). RF Detector works as passive detectionequipment, which will not

actively generate electromagneticsignals. Therefore, it is green and safe.

Capable of accurately identifying over a hundred models includin g most consumer drones, Wi-Fi toy

drones, DIY FPV drones, analog/digital video transmitters, etc.Built-in protocol analysis channels enable

precise positioning of DJI and other consumer drones and their remote controllers. Networking of multiple devices

supports TDOA-based positioning.

SPECIFICATIONS

Detection Coverage Frequency Band：300MHz~6GHz

Detection Range：horizontal 360° omni-directional

Accuracy：≤3°(rms)

Detection Radius：≥3km (open environment, UAV transmit power 0.1W)

Detection Height：≥1000m

Protocol Resolution Positioning Accuracy：≤5m

Remote Control Positioning Accuracy：≤5m

Multi-station TDOA Positioning Accuracy：inside the station ≤ 30m;outside the station ≤ 100m

Receiving Sensitivity：≤ -110 dBm

Size&weight ：≤φ450mm × 270mm&≤16kg

Power Consumption ：≤70W
